GCSE Physics Tutorial: Required Practical 2 - Investigating Efficiency of Different Materials as Thermal Insulators

In this required practical, you will investigate the efficiency of different materials as thermal insulators. Thermal insulation is essential for reducing heat transfer between the interior and exterior of buildings, appliances, and various systems. By comparing the insulating properties of different materials, you will gain insights into their effectiveness in reducing heat loss or gain. Let's explore the steps involved in conducting this experiment.

Aim: To investigate and compare the efficiency of different materials as thermal insulators.

Materials Needed:

1. Heat source (e.g., a beaker of hot water)

2. Thermometer

3. Stopwatch or timer

4. Several small containers (e.g., cups or beakers)

5. Different materials for insulation (e.g., wool, foam, cotton, aluminum foil, newspaper, bubble wrap, etc.)

6. Adhesive tape or rubber bands to secure the insulating materials

7. Measuring cylinder (optional, for water volume measurements)

Procedure:

1. Prepare your materials: Cut or shape the insulating materials to fit around the small containers. Ensure that each container is wrapped with the same thickness of the insulating material to maintain consistency.

2. Set up the experiment: Place the heat source (beaker of hot water) on a stable surface. Measure the initial temperature of the hot water using the thermometer. The starting temperature should be consistent for accurate results.

3. Record initial temperature: Carefully pour a known volume of hot water (e.g., 100 mL) into each small container. Measure and record the initial temperature of the water in each container.

4. Wrap the containers: Quickly wrap each container with a different insulating material, ensuring it is securely fastened in place with adhesive tape or rubber bands.

5. Start the timer: Start the stopwatch or timer as soon as all the containers are wrapped with their respective insulating materials.

6. Monitor temperature change: At regular intervals (e.g., every 1 minute), record the temperature of the water in each container. Continue measuring until the temperatures stabilise or until a sufficient amount of data is collected.

7. Calculate efficiency: Calculate the efficiency of each insulating material by comparing the temperature change over time. Efficiency can be calculated by dividing the temperature change of the insulated container by the temperature change of the uninsulated (control) container (the container without any insulating material).

Safety Tips:

• Handle hot water with care to avoid burns or scalds.

• Use appropriate insulation materials that are safe and non-toxic.

Analysis and Conclusion:

• Plot a graph of temperature against time for each insulating material.

• Analyse the data to identify which material is the most efficient thermal insulator. The steeper the slope of the graph, the faster the temperature changes, indicating better insulation.

• Consider factors that might influence the results, such as material thickness, density, and conductivity.

• Draw conclusions based on your findings and explain why some materials are more effective as thermal insulators than others.

Extensions:

• Investigate the effect of varying material thickness on insulation efficiency.

• Explore the impact of different temperatures of hot water on insulation efficiency.

Conclusion: Through this required practical, you have investigated and compared the efficiency of different materials as thermal insulators. Understanding the insulating properties of materials is essential for various applications, including building design, energy conservation, and reducing heat loss in everyday appliances and systems. The results of this experiment will provide valuable insights into the effectiveness of various materials in reducing heat transfer, leading to more informed choices in designing energy-efficient and sustainable solutions.

Example data

Materials Used:

1. Wool

2. Foam

3. Cotton

4. Aluminum Foil

5. Newspaper

6. Bubble Wrap

Initial Temperature of Hot Water: 80°C

Container Size: 100 mL (for each material)

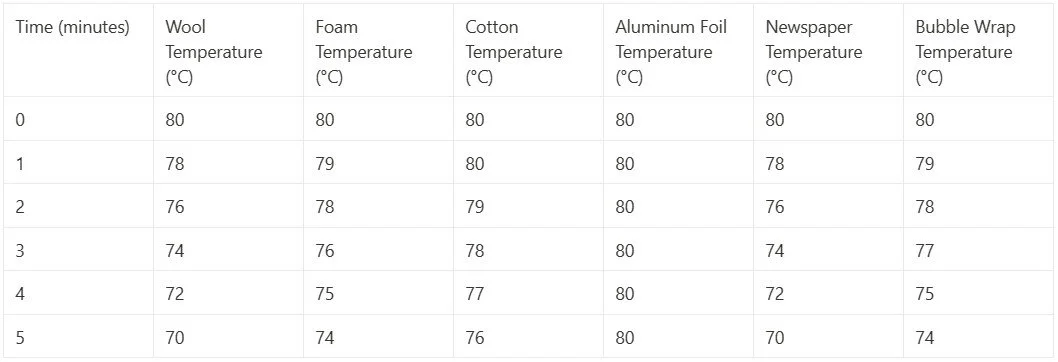

Note: The temperatures in the table are just hypothetical data points for demonstration purposes. In an actual experiment, you would take multiple readings at regular intervals and average them to obtain more accurate and reliable results. The temperatures for the uninsulated container (control) would also be recorded to compare the insulation efficiency of each material.

Analysis:

• Plot graphs of temperature against time for each material to visualise the cooling rate.

• Calculate the temperature change for each material over time.

• Compare the temperature change for each material with the uninsulated container to determine the insulation efficiency.

Conclusion: Based on the data and analysis, you can draw conclusions about the efficiency of different materials as thermal insulators. Identify which material retains heat best and which one allows for faster heat loss. Explain the results and discuss how the properties of the materials influence their insulating capabilities. Remember that in real experiments, more data points and repetitions would be necessary to obtain reliable and accurate conclusions.
